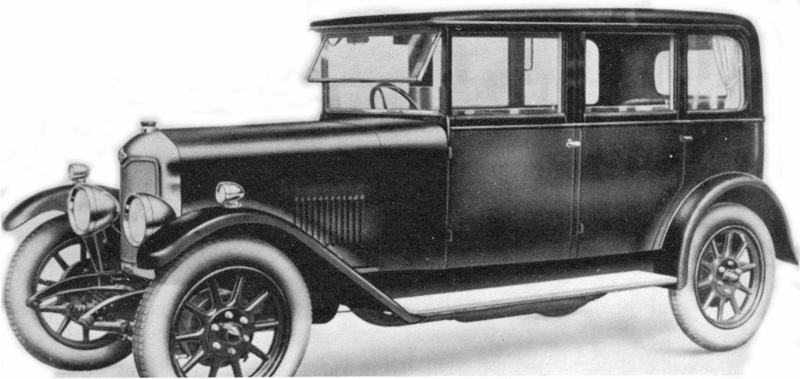

Riley 12 Chatsworth. (1928)

1927 Riley Chatsworth (RF3361)

Riley Chatsworth




ENGINE

4cyl Sidevalve
RAC Rating 11.9
Bore 69 Stroke 110
Capacity 1645 cc
50 bhp at 3600rpm
Carburation Zenith

TRANSMISSION

Dry Plate Clutch
3-speed gearbox.
Top gear ratio 5:1
3rd G/r 7.8:1
2nd G/r 12.1:1
1st G/r 19.4:1
Reverse 24.6:1

SUSPENSION

Semi Elliptic

BRAKES

Self Compensating 4-wheel

PERFORMANCE

DIMENSIONS

Wheelbase 9' (aprx 2730mm)
Track 4'4" (aprx 1310mm)
Length 13'6" (aprx 4090mm)
Width 5'6" (aprx 1620mm)
Wheels Artillery or Wire 6-stud 19x3.0
Tyres 29x4.95
Weight 12.75cwt (chassis only)
Fuel Tank 7galls

PRICE

£398
